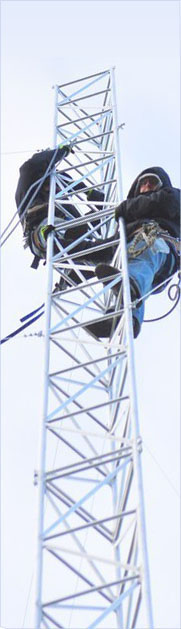

The structure of the M435 aluminum mast is made of segments with a length of 4 or 6 meters. It is based on a truss with a side of 435 mm. Each segment is connected with strong bolts ensuring the stability of the structure. Its riser is additionally supported by steel ropes which are protected by hot-dip galvanization. The mash can be lifted and moved thanks to the biaxial base.
Construction: triangle truss with a side 435 (size measured in axes of the bearing tubes)
Segment Lenght/Weight: 2m:~ 5,5[kg]; 3m:~ 8,5[kg], 4m:~ 11[kg]; 6m:~16,5[kg].
Segment Connection: srew pins M8x180
Guy Wires: steel rope fi=3
Material: aluminium EN AW-6005A T6

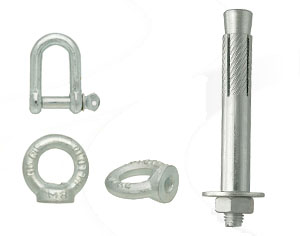

Included: guy wires*, Roman screws, screw fasteners, forged eye-eye , thimbles,
shackles, mast base,, clamps, self-locking nuts, regular nuts, regular gaskets,
lightning arrester, plugs, eye-nut.
All structure fitting have certificates and atest that comply with European Council Directives and national legislation.
