M1000F – lattice mast
H09 H12 H15 H18 H21 H24 H27 H30 H33 H36 H39

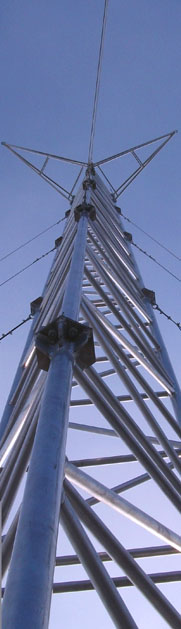

The 1000F mast is assembled from 3 or 6 meter sections. Each segment is in the shape of a triangle with a side length of 1000mm, which are connected by a flange. The mast stands in a vertical position thanks to the use of galvanized stays, which are installed to the fi120 pipe. It can be installed to SKC-BLOCK.
Construction: triangle truss with a side 1000mm (size measured in axes of the bearing tubes)
Segment Lenght/Weight: 3m: ~ 15[kg].
Segment: bolted flanges
Guy Wires: steel rope fi=5
Material: aluminium EN AW-6005A T6
[PDF] LIST OF CONSTRUCTION EQUIPMENT M1000F
All structure fitting have certificates and atest that comply with European Council Directives and national legislation.
Accessories for M1000F
Aerial bracket WA1000F
The antenna bracket used allows the separation of antennas hanging on masts from the M1000F group. The distance of the individual antennas can be 20 cm. The bracket is installed to the fi35 pipe, which is available in four lengths: 0.8m, 1m, 1.5m, 2m. The set includes U-Bolt model clamps with fastenings to the structure in every place. Additional equipment with transceivers on supports ensures better safety when using the mast.
The aerial bracket WA1000F
Warranty: 24 months.
Aerial bracket WR1000F
WR1000F is a radio link support, which can be optionally mounted to the mast structure of the M1000F line, on which you can mount devices to fi60 or fi50 pipes up to a length of 1 m. The set includes clamps for mounting on any height. The installation of transceivers increases safety on mast.
The radio link bracket WR1000F
Mast final WR1000F Coping with a spacing crown
Coping with a spacing crown with distance of 400mm, can be installed to pipes fi50 or fi60. Increases safety.
Mast final coping with spacing WR1000F
Warranty: 24 months
