M650F – lattice mast
H06 H09 H12 H15 H18 H21 H24 H27 H30 H33 H36 H39 H42

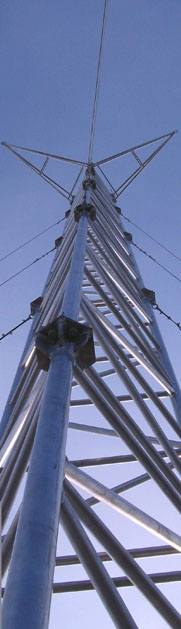

The 650F mast is assembled from 3 or 6 meter sections. Each segment is in the shape of a triangle with a side length of 650mm, which are connected by a flange. The mast stands in a vertical position thanks to the use of galvanized stays, which are installed to the fi120 pipe.
Construction: triangle truss with a side 650 (size measured in axes of the bearing tubes)
Segment Lenght/Weight: 3m: ~ 15[kg].
Segment: bolted flanges
Guy Wires: steel rope fi=5
Material: aluminium EN AW-6005A T6
[PDF] LIST OF CONSTRUCTION EQUIPMENT M650F
All structure fitting have certificates and atest that comply with European Council Directives and national legislation.
Accessories for M650F
Aerial bracket WA650F
The antenna bracket used allows the separation of antennas hanging on masts from the M650F group. The distance of the individual antennas can be 20 cm. The bracket is installed to the fi35 pipe, which is available in four lengths: 0.8m, 1m, 1.5m, 2m. The set includes U-Bolt model clamps with fastenings to the structure in every place. Additional equipment with transceivers on supports ensures better safety when using the mast.
The aerial bracket WA650F
Warranty: 24 months.
Aerial bracket WR650F
WR650F is a radio link support, which can be optionally mounted to the mast structure of the M650F line, on which you can mount devices to fi60 or fi50 pipes up to a length of 1 m. The set includes clamps for mounting on any height. The installation of transceivers increases safety on mast.
The radio link bracket WR650F
Mast final WR650F Coping with a spacing crown
Coping with a spacing crown with distance of 400mm, can be installed to pipes fi50 or fi60. Increases safety.
Mast final coping with spacing WR650F
Warranty: 24 months
